RoboVista: Evaluating Vision-Language Models for Diverse Robot Applications

Accepted to RSS 2026

Project Page | Dataset (HuggingFace) | Leaderboard | Paper (coming soon)

Shuangyu Xie*, Kaiyuan Chen*, Ziyang Chen, Simeon Adebola, Yixuan Huang, Zehan Ma, Tianshuang Qiu, Wentao Yuan, Dhruv Shah, Pannag R. Sanketi, Ken Goldberg

UC Berkeley · Princeton University · Google DeepMind (*equal contribution)

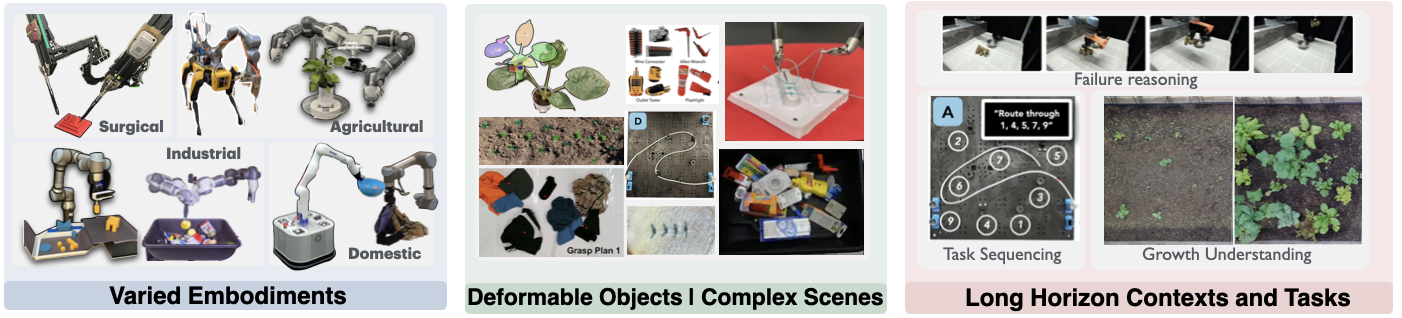

TL;DR — RoboVista is an expert-annotated, robot-centric Visual Question Answering benchmark built with Robot Question Answering (RQA), a modular framework that turns real decision points from robot systems into grounded VQA. It contains 474 multiple-choice questions across 6 robot application domains and 39 task types, from agriculture and surgery to industrial automation and autonomous driving. State-of-the-art VLMs show substantial gaps (best model only 56.5%), and physical robot experiments confirm that RoboVista performance strongly correlates with real-world task execution.

The Benchmark

Each question pairs one or more robot-centric images with a five-option multiple choice question, the correct answer, and a detailed expert reasoning explanation. Visual data is curated from 18 peer-reviewed publications and open robot datasets (DROID, Open X-Embodiment, AgiBot). All annotators are graduate-level and above, with more than half holding Ph.D. degrees in Robotics.

Expert-annotated VQA questions	474
Robot application domains	6
Distinct robot task types	39
Robot-centric images	730

Domains:

Domain	Questions	Description
Open Datasets	150	DROID, Open X-Embodiment, and AgiBot trajectories, with questions based on the Robo2VLM framework
Industrial	144	1D/3D deformable manipulation, assembly, bin picking, and defect scanning on factory lines
Agriculture	62	Robot gardening, plant inspection, and weed removal under occlusion and extreme lighting
Domestic	52	Home tidying and garment manipulation in well-lit, human-scale, structured scenes
Surgical	46	Long-horizon knot tying and debridement on the da Vinci Research Kit (dVRK)
Driving	20	Self-driving decision points from the autonomous-driving challenge in Mcity

Questions span four functional layers of modular robot systems: perception (scene understanding), high-level planning, action awareness (motion feasibility), and robustness (failure detection and recovery).

Results

Zero-shot accuracy (%) on RoboVista. Random baseline is 20%. See the leaderboard for the full table.

Model	All	Agri.	Driving	Home	Industry	Surgery	Open
Gemini 2.5 Pro	56.5	48.4	50.0	63.2	48.4	76.1	58.3
Qwen3-235B-A22B	51.3	46.8	60.0	53.9	37.3	69.6	56.9
GPT-4o	49.6	50.0	50.0	59.2	32.5	67.4	53.5
Qwen3-VL-32B	49.2	48.4	55.0	48.7	35.7	65.2	55.6
GPT-5	48.1	38.7	55.0	46.1	35.7	63.0	58.3
RoboBrain 2.5-8B	45.8	37.1	55.0	51.3	36.5	56.5	50.0
Qwen2.5-VL-72B	44.3	43.5	35.0	40.8	31.7	69.6	50.7
Robo2VLM-ER	42.6	35.5	40.0	43.4	32.5	54.3	50.7
Qwen3-8B (text-only)	25.1	27.4	30.0	30.8	22.2	26.1	24.0

Key findings:

• RoboVista is hard — even the best model reaches only 56.5% overall, and every domain leaves a substantial gap.
• Domains differ sharply — domestic scenes are easiest; agriculture (fine-grained plant morphology, self-occlusion, deformable structures) is consistently hardest.
• Chain-of-Thought is a trade-off — it degrades low-level perception by up to 12% through over-thinking, yet often improves multi-step planning.
• In-context learning backfires — same-domain examples reduce accuracy by 2.8–6.5% and raise calibration error by up to 9.7%.
• Perception is the bottleneck — misidentification is the dominant failure mode (30.2%); scale reduces it but does not resolve spatial reasoning.
• The benchmark is predictive — RoboVista scores strongly correlate with real-world bimanual alignment (ρ = −0.93) and surgical knot-tying progress on physical robots.

Quick Start

Load the dataset

from datasets import load_dataset

ds = load_dataset("sy-xie/robovista", split="train")
print(ds[0]["question"])
print(ds[0]["choices"])
print(ds[0]["correct_answer"])
ds[0]["images"][0].show()  # PIL image

Browse the dataset locally

An interactive gallery viewer with filtering by domain, task, and ability type:

pip install -r requirements.txt
python viewer/app.py

Then open http://localhost:7860. Click any tile to see the full question, images, answer choices, and reasoning.

You can also point the viewer at a local parquet export with --parquet path/to/file.parquet.

Benchmark a model

Evaluate any vision-language model served through an OpenAI-compatible API (OpenAI, vLLM, SGLang, ...):

# OpenAI API
python benchmark/run_benchmark.py \
    --endpoint https://api.openai.com/v1 \
    --api-key $OPENAI_API_KEY \
    --model-id gpt-4o \
    --prompts standard cot

# Local vLLM / SGLang server
python benchmark/run_benchmark.py \
    --endpoint http://localhost:8000/v1 \
    --api-key sk-local \
    --model-id Qwen/Qwen2.5-VL-7B-Instruct \
    --model-key qwen2.5-vl-7b

Two prompt configurations are included in benchmark/prompts.json:

• standard — answer with the letter only (matches the zero-shot numbers above)
• cot — chain-of-thought reasoning before the final answer

Useful flags: --max-questions 10 for a quick smoke test, --concurrency 10 for faster runs. Results are written to results/summary_<model>_<timestamp>.json with per-question responses and overall accuracy. Interrupted runs resume automatically from intermediate checkpoints.

Dataset Fields

Field	Type	Description
images	list of images	One or more robot-centric images for the question
question	string	The question text
choices	list of strings	Answer options A–E
correct_answer	string	The correct option letter
reasoning	string	Expert explanation for the answer
domain	string	Application domain (agriculture, driving, domestic, industrial, surgical, open datasets)
task	string	Robot task category (39 types)
ability_type	string	Functional layer being tested (perception, planning, action awareness, robustness)
ability_subcategory	string	Finer-grained ability label
publication_source	string	Source publication or dataset for the images
id	string	Unique question id

Citation

@inproceedings{xie2026robovista,
  title     = {RoboVista: Evaluating Vision-Language Models for Diverse Robot Applications},
  author    = {Xie, Shuangyu and Chen, Kaiyuan and Chen, Ziyang and Adebola, Simeon and Huang, Yixuan and Ma, Zehan and Qiu, Tianshuang and Yuan, Wentao and Shah, Dhruv and Sanketi, Pannag R. and Goldberg, Ken},
  booktitle = {Robotics: Science and Systems (RSS)},
  year      = {2026},
}
